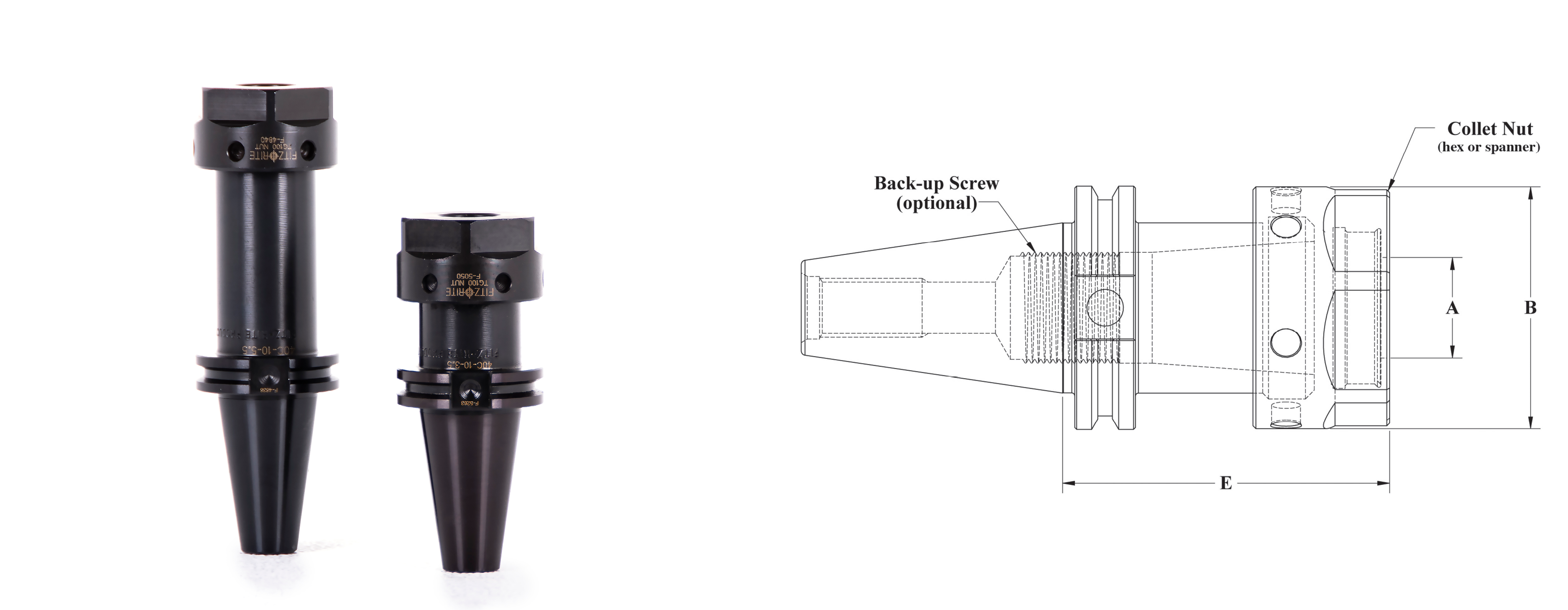

Collet Chucks- CAT 40 TG100 Collet Chucks
Our collet chuck adapters are produced from mill-certified, hardened, alloy steel. Tapers are held to AT3 and cavities are concentric within .0002”. Projection lengths in 3.5 and 5.5 inches. All collet chuck adapters come with a collet nut. Collet chuck adapters require a retention knob fitted to your machine specifications.
Retention knobs, collet chuck extensions, collets, and additional collet nuts all available for sale and same day shipment.
| Image | Part Number | A | B | E | List Price | Qty | Add to Cart |
|---|---|---|---|---|---|---|---|
 |
40C-10-3.5 | .093-1.000 | 2.50 | 3.50 | $ 124.00 | ||
 |
40C-10-5.5 | .093-1.000 | 2.50 | 5.50 | $ 156.00 |
| Image | Part Number | A | B | E | List Price | Qty | Add to Cart |
|---|---|---|---|---|---|---|---|
 |
50C-10-3.5 | .093-1.000 | 2.50 | 3.50 | $ 143.00 | ||
 |
50C-10-5.5 | .093-1.000 | 2.50 | 5.50 | $ 168.00 | ||
 |
50C-10-7.5 | .093-1.000 | 2.50 | 7.50 | $ 182.00 | ||
 |
50C-10-13 | 093-1.000 | 2.50 | 13.00 | $ 442.00 |
